Preparing CMP-compatible images

Before a Glance image can be used for virtual machine provisioning through StackConsole CMP, prepare it correctly in OpenStack and then register it in CMP.

This guide covers image-side requirements, OpenStack considerations, and CMP best practices for Upstream OpenStack, Red Hat OpenStack Platform (RHOSP), Canonical Charmed OpenStack, and Virtuozzo Hybrid Infrastructure (VHI).

The goal is reliable password management, SSH key injection, root disk sizing, startup scripts, Marketplace applications, networking, and guest customization when CMP provisions Nova servers.

OpenStack vs CloudStack

CloudStack and OpenStack handle VM images and guest customization differently. CloudStack may rely on password-enabled templates, Public/Featured flags, and ACS UserData services. OpenStack does not use those ACS concepts.

CMP primarily relies on Glance images, Nova server creation, Neutron networking, cloud-init on Linux, cloudbase-init on Windows, the OpenStack metadata service and/or ConfigDrive, Nova adminPass where supported, and CMP-generated user-data.

For CloudStack, see Preparing CMP-compatible templates.

How CMP uses the image at provision time

1. Resolves the CMP template to the Glance image UUID (template_id)
2. Selects or creates the Nova flavor according to the VM package
3. Creates the server using a block device mapping when boot-from-volume is enabled
4. Creates or attaches Neutron ports from the selected networks/subnets
5. Applies security groups to the ports
6. Passes user-data to the instance
7. Optionally sends adminPass as part of the Nova server creation request
8. Boots the instance
9. cloud-init / cloudbase-init processes metadata and user-data inside the guest

Image requirements summary

Requirement	Required	Description
Glance status active	Yes	Image must be ready for provisioning
Bootable disk image	Yes	Compatible with the target OpenStack compute environment
cloud-init for Linux	Yes*	Required for CMP Linux guest customization through user-data
cloudbase-init for Windows	Recommended / Required*	Required for Windows guest customization through metadata/user-data
Metadata or ConfigDrive support	Yes*	Required for guest initialization that consumes OpenStack metadata
Correct disk_format	Yes	Must be supported by the deployment / hypervisor
Correct firmware mode	Yes	BIOS/UEFI must match the deployment
Correct min_disk	Recommended	Minimum disk size required to boot
Correct min_ram	Recommended	Minimum memory required by the image
DHCP / network configuration	Recommended	When the guest obtains networking dynamically
SSH server	Required for SSH access	sshd installed and enabled if SSH is offered
VirtIO drivers	Required where applicable	Especially for KVM/QEMU and Windows images
Default OS user consistency	Recommended	Should match CMP OS configuration
qemu-guest-agent	Recommended	Guest operations and snapshot-related workflows where supported

*Required when the corresponding CMP feature depends on guest customization.

Supported image types

Prefer distribution-provided cloud images over installer ISOs:

• Ubuntu, Debian, Rocky Linux, AlmaLinux, CentOS, RHEL cloud images
• Other vendor-provided OpenStack/KVM cloud images

For KVM/QEMU, distributions commonly provide qcow2 images. Do not expose installer ISOs as normal CMP OS templates unless the deployment explicitly supports an install workflow.

Glance image properties

Property	Description
id	Unique UUID of the image
name	Image name
status	Current image state
visibility	Controls image access
disk_format	Format of the image
container_format	Image container format
min_disk	Minimum disk size required to boot
min_ram	Minimum RAM required to boot
virtual_size	Virtual disk size, when available
os_distro	Operating system distribution
os_version	Operating system version
architecture	CPU architecture
protected	Whether deletion protection is enabled
tags	Operator-defined image tags

Recommended additional properties where applicable: os_distro, os_version, architecture, hw_firmware_type, hw_machine_type, hw_scsi_model, hw_rng_model, hw_qemu_guest_agent, hw_disk_bus, hw_scsi_model. Exact properties depend on the OpenStack deployment, Nova, hypervisor, and image.

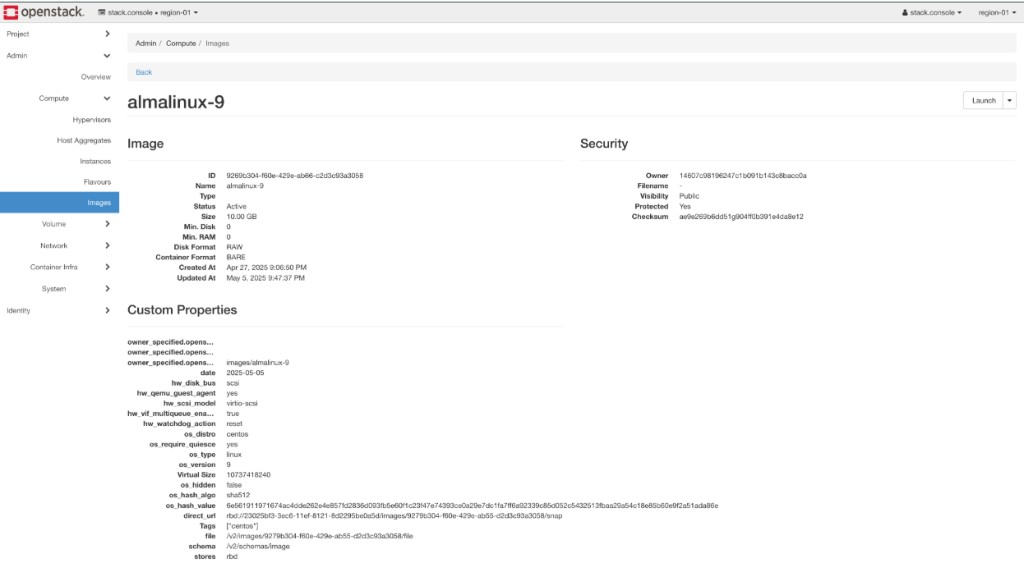

Example: Glance image overview (Horizon)

Horizon Admin → Compute → Images shows the UUID, status, format, visibility, and custom properties you need when mapping the image in CMP.

What to capture for CMP

Note the Glance ID (UUID), Status (Active), Disk Format, min_disk / min_ram, visibility, and useful custom properties (for example hw_qemu_guest_agent, os_distro, os_version). CMP stores the UUID — if the image is deleted and recreated, remap the template.

Image format

Common formats include qcow2, raw, vmdk, vhd, vhdx, vdi, and iso. Supported formats depend on the deployment and hypervisor. For KVM/QEMU, qcow2 and raw are common.

Image status

The image must be active before production use. Do not expose an image that is still uploading or importing as a CMP template.

Image visibility

Visibility	Description
public	Available to all projects/users subject to cloud policy
private	Available only to the owner
shared	Available to explicitly authorized image members
community	Readable by users but not always in every default image list

For provider-managed catalogue images, prefer public or appropriately configured shared images. CMP should only expose images intentionally mapped into the CMP catalogue.

cloud-init for Linux

For Linux images, cloud-init is the recommended mechanism for consuming OpenStack user-data and metadata:

• cloud-init installed and enabled
• Configured for the target distribution
• Access to OpenStack metadata and/or ConfigDrive
• Ability to create/configure users, install SSH authorized keys, execute user-data
• Functioning network configuration

Example cloud-config (illustrative):

#cloud-config

users:
  - name: <username>
    gecos: New User
    sudo: ALL=(ALL) NOPASSWD:ALL
    shell: /bin/bash
    groups: sudo
    lock_passwd: false
    ssh_authorized_keys:
      - <public_key>

chpasswd:
  list: |
    <username>:<password>
  expire: False

ssh_pwauth: true

Metadata service and ConfigDrive

OpenStack provides instance-specific configuration through the Metadata Service and ConfigDrive. cloud-init can consume:

• Instance metadata
• User-data
• SSH key information
• Vendor data

The metadata service is commonly at the link-local address 169.254.169.254. ConfigDrive presents metadata through an attached virtual drive when the deployment requires it or when the metadata service is unavailable.

CMP image requirement

The image should support at least one metadata delivery mechanism used by your OpenStack deployment. Test with the provider’s actual metadata / ConfigDrive configuration.

Password injection

Provider-level authentication policy

Value	Linux	Windows
only_password	Password required	Password required
only_ssh	SSH key required	Password-oriented flow
both_required	Password + SSH key	Password required
any_one_required	Password or SSH key	Password required
none_required	Both optional	Both optional

Exact behaviour follows CMP authentication validation rules. Password complexity is a CMP requirement, not a Glance requirement.

adminPass vs guest password

Nova supports an adminPass field on server create. That alone does not guarantee the Linux guest password changes — behaviour depends on the deployment, image, guest init, and configuration.

For Linux cloud images, do not rely exclusively on adminPass. Prefer cloud-init user-data:

CMP password
      │
      ├── Nova adminPass
      │
      └── cloud-init user-data
              │
              ▼
       Guest OS password

CMP may also set instance metadata such as admin_pass. That is CMP-specific metadata — do not confuse it with a standard OpenStack password mechanism.

Password method in CMP

CMP field	Recommended value
How Password will be set?	Using Startup Script
Is Template Password Enabled?	true when password login is offered
Does template support SSH Key using startup script?	true when SSH key injection is offered

Recommended Linux flow: customer password → CMP → generated cloud-config → Nova user-data → metadata/ConfigDrive → cloud-init → Linux user password.

Default operating system user

Operating system	Typical cloud user
Ubuntu	ubuntu
Debian	debian
Rocky Linux	rocky
AlmaLinux	almalinux
RHEL	cloud-user
CentOS	centos
openSUSE	opensuse

These are examples — the account must match the image. Username resolution order is typically: username supplied during VM creation (if allowed) → template-level default → Operating System catalogue default.

SSH key injection

CMP may accept an SSH key from the customer, register it as a Nova keypair when required, and include the public key in CMP-generated cloud-init user-data.

Requirements:

• OpenSSH server installed; SSH service enabled
• cloud-init able to process SSH keys
• Correct user home directory and permissions
• Security groups allowing TCP/22 where required

SSH password authentication

Many official Linux cloud images disable SSH password authentication by default. If CMP offers password-based SSH login, verify ssh_pwauth and guest SSH configuration. Setting a password through Nova or cloud-init does not automatically enable SSH password login.

Root disk and volume sizing

Concept	Meaning
Image size	Actual image data size
virtual_size	Virtual disk size when available
min_disk	Minimum disk size required to boot
min_ram	Minimum RAM required to boot
CMP Minimum Storage	CMP-side minimum root disk
Root package size	Size of the boot volume created by CMP
Flavor disk	Flavor-defined root disk; may be 0 when boot-from-volume is used

Keep cloud images as small as practical, set min_disk correctly, know the virtual disk size, configure CMP Minimum Storage accordingly, and test filesystem expansion when using a larger Cinder boot volume.

Flavor disk and boot-from-volume

When CMP uses destinationType = volume, the root disk comes from the Cinder boot volume. CMP may use a flavor whose disk value is 0. That is a CMP provisioning choice, not a universal OpenStack requirement.

Networking requirements

CMP creates or attaches Neutron ports for the VM. The guest must bring up its NIC correctly:

• Support DHCP for standard dynamic networking
• Use the distribution’s supported network manager
• Do not hard-code interface names unless stable
• Remove stale MAC-address-specific network configuration
• Include required virtual NIC drivers

VirtIO drivers

For KVM/QEMU, Linux images normally include VirtIO support (network, block, SCSI where applicable). Windows images require VirtIO drivers before capture.

Firmware: BIOS and UEFI

Image firmware must match the VM configuration. A mismatch (bootloader/partitioning vs firmware) can leave a successfully created VM that does not boot.

Guest agent: qemu-guest-agent

Install qemu-guest-agent on Linux and Windows images on QEMU/KVM where supported. Benefits can include guest interaction, shutdown/reboot, guest information exchange, and filesystem freeze for workflows that use it. Exact behaviour depends on the compute driver and deployment.

Startup scripts and Marketplace applications

CMP can combine password configuration, SSH keys, template startup scripts, customer startup scripts, Marketplace application scripts, and monitoring scripts into Nova user-data.

For Linux, the guest must process user-data. Scripts should use a valid shebang (for example #!/bin/bash) or valid cloud-config. Keep generated user-data within the OpenStack deployment’s request / user-data size limits.

See Marketplace Apps.

Windows images

• cloudbase-init installed
• VirtIO drivers installed
• Windows OpenSSH only if intentionally supported
• Metadata / ConfigDrive access
• Password, network, and RDP tested where applicable

CMP treats Windows as a password-oriented authentication workflow unless Windows-specific SSH support is explicitly implemented. Do not assume the Linux cloud-init SSH-key workflow works on Windows.

Image security

Do not store in the golden image:

• Hard-coded customer credentials or temporary administrator passwords
• Private SSH keys or cloud provider API credentials
• Customer-specific certificates and configuration
• Persistent MAC address configuration
• Stale cloud-init instance identity

Cloud-init state before image capture

If you capture from an existing VM, clean cloud-init state using the distribution’s image-building procedure so the next boot initializes as a new instance.

Image replacement and UUIDs

CMP stores the Glance image UUID. Deleting and recreating an image produces a new UUID — update the CMP template. Renaming an image does not change its UUID.

See Configuring images in CMP.

Test boot checklist

Basic image validation

• Image status is active
• Valid disk format; image boots successfully
• Expected architecture; BIOS/UEFI correct
• min_disk / min_ram correct
• Expected OS metadata

Linux validation

• cloud-init installed and enabled
• Metadata service tested; ConfigDrive tested if used
• User-data, SSH key, and password tested
• SSH server enabled; DHCP/network tested
• VirtIO and qemu-guest-agent tested where required
• Filesystem expansion tested
• No hard-coded MAC address
• Cloud-init state cleaned before final capture

Windows validation

• cloudbase-init installed
• Metadata/ConfigDrive, password, network, VirtIO, RDP tested where applicable

CMP validation

• Image mapped to correct zone; template active
• Correct OS family/version and default username
• Password method and password-enabled / SSH startup-script options correct
• Minimum Storage / Memory / CPU configured
• vm_auth_requirement matches supported authentication
• Security groups allow required access
• Startup scripts and Marketplace apps tested
• Console access and end-to-end CMP provisioning tested

Recommended golden image

A production-ready Linux CMP image should approximately contain:

Operating System
      │
      ├── cloud-init
      ├── OpenSSH server
      ├── VirtIO drivers
      ├── qemu-guest-agent
      ├── Correct network configuration
      ├── Correct bootloader
      ├── Correct BIOS/UEFI configuration
      └── Clean cloud-init state

Do not include customer passwords, private SSH keys, API credentials, hard-coded MACs, customer-specific configuration, or stale instance identity.

CMP template user config

Goal	Password method	Password enabled	SSH via startup script	Recommendation
Linux password + optional SSH	Using Startup Script	Yes	Yes	Recommended
Linux SSH-only	Using Startup Script	No	Yes	Recommended for SSH-only templates
Linux password-only	Using Startup Script	Yes	No	Supported
Windows password	As supported by CMP	Yes	No	Use cloudbase-init
Marketplace Linux image	Using Startup Script	As required	As required	cloud-init required

Best practices

• Prefer official distribution cloud images
• Use cloud-init (Linux) and cloudbase-init (Windows)
• Support metadata service and/or ConfigDrive per deployment
• Set accurate min_disk and min_ram; test filesystem expansion on larger Cinder volumes
• Remove hard-coded MAC/network configuration; install VirtIO and consider qemu-guest-agent
• Verify BIOS/UEFI compatibility; use a consistent default username per OS family
• Test password and SSH if both are offered; do not rely solely on Nova adminPass
• Use CMP Using Startup Script password method for Linux cloud images
• Keep Marketplace/startup scripts within user-data limits
• Clean cloud-init state before capturing a reusable golden image; never store secrets
• Remap the CMP template when the Glance UUID changes
• Keep vm_auth_requirement consistent with template authentication options
• Validate the full workflow through CMP, not only Horizon

Common problems

Symptom	Check
VM boots but password does not work	cloud-init, user-data, ssh_pwauth, guest username, sshd, Nova adminPass behaviour
SSH key does not work	cloud-init status, metadata/ConfigDrive, authorized_keys, username, sshd, security group TCP/22
VM has no IP address	Neutron port, subnet DHCP, guest network manager, cloud-init networking, VirtIO NIC, security groups
VM does not boot after flavor change	CPU architecture, RAM, firmware, VirtIO, disk bus, image properties
Fails when root disk smaller than image	Glance min_disk, virtual_size, CMP Minimum Storage, Cinder volume size
Startup script does not execute	cloud-init installed/enabled, metadata/config-drive, user-data received, multipart MIME, shebang, cloud-init logs / cloud-init status --wait / journalctl -u cloud-init

Reference architecture

CMP provisioning model

Important distinction

OpenStack concepts	StackConsole CMP concepts
Glance image, Nova server, Cinder volume, Neutron network/port, security group, metadata service, ConfigDrive, user-data, adminPass, cloud-init / cloudbase-init	CMP template, Operating System catalogue, User Config, Password Method, Template Password Enabled, SSH Key using Startup Script, Minimum Storage/Memory/CPU, vm_auth_requirement, Marketplace pipeline, image-to-zone mapping

Keep these separate when troubleshooting. A CMP template misconfiguration is not automatically an OpenStack image issue, and vice versa.

Related

• Configuring images in CMP
• Images overview
• Connecting CMP to OpenStack
• Virtual Machine packages
• Console access
• OpenStack requirements
• Preparing CMP-compatible templates (CloudStack) — CloudStack/ACS only

OpenStack references

• OpenStack Virtual Machine Image Guide
• OpenStack Image API v2
• OpenStack Nova Compute API
• OpenStack Metadata Service
